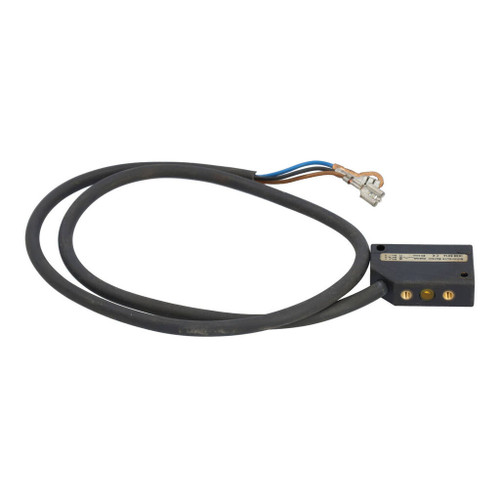

The Bomag 58260382 Proximity Switch is a genuine OEM component designed for Bomag BW-series tandem rollers, including the BW 80 AD-5, BW 90 AD-5, BW 100 AD-5, BW 120 AD-5, BW 138 AD-5, and related AC, SC, SL, SLC, ACM, ADM, SCC, and CC variants in the generation-5 lineup. Sourced directly from Bomag, this proximity switch carries the same specifications as the part installed at the factory, ensuring an exact electrical and mechanical match. This switch installs directly into the same mounting position as the original, with no adaptation needed to interface with the machine's existing wiring harness and sensor circuit. Confirmed fitment covers the full range of BW-series generation-5 tandem rollers listed for part number 58260382.
Key Features
- Genuine OEM Sensor Specification — matched to Bomag's original switching distance, output signal type, and voltage rating for this tandem roller application, so the control system receives the correct signal every time
- Drop-In Electrical and Mechanical Fit — same thread form, body diameter, and connector configuration as the original, allowing direct installation into the existing sensor port and harness
- Broad Generation-5 Tandem Roller Coverage — fits the BW 80 AD-5, BW 90 AD-5, BW 90 AC-5, BW 90 SC-5, BW 100 AD-5, BW 100 AC-5, BW 100 ADM-5, BW 100 ACM-5, BW 100 SC-5, BW 100 SCC-5, BW 100 SL-5, BW 120 AD-5, BW 120 AD-5 CC, BW 120 AC-5, BW 120 SL-5, BW 120 SLC-5, BW 120SL-5, BW 135 AD-5, BW 138 AD-5, and BW 138 AC-5 tandem rollers
- Consistent Position Detection — a correctly functioning proximity switch maintains accurate, repeatable detection of drum or drivetrain position, keeping machine control responses predictable and smooth during compaction passes
- Critical Sensor Integrity — a failed or drifting proximity switch can trigger false fault codes, disable vibration or drive functions, or cause erratic machine behavior; replacing it with a genuine OEM part restores proper system response
A proximity switch is a non-contact electronic sensor that detects the presence or position of a metal target — such as a rotating drum component or a mechanical actuator — without physical contact. On Bomag tandem rollers, this switch feeds positional data to the machine's control system, enabling functions such as vibration activation, drum speed monitoring, or travel direction sensing. When the switch fails or drifts out of specification, the control unit may misread machine state, leading to warning faults, disabled operating modes, or unpredictable drivetrain behavior that interrupts compaction work.
Part Details
| Part Number | 58260382 |
|---|---|
| Brand | Bomag |
| Part Type | Genuine OEM |
| Description | Proximity Switch |
Compatibility & Fitment
| Name | Model | Machine Number |
|---|---|---|
| Tandem Roller | BW 100 SCC-5 | 00818505, 00824127, 00825295 |
| Tandem Roller | BW 80 AD-5 | 00818707, 00824117, 00825283 |
| Tandem Roller | BW 90 AD-5 | 00818709, 00824119, 00825285 |
| Tandem Roller | BW 100 ADM-5 | 00818711, 00824121, 00825289 |
| Tandem Roller | BW 90 SC-5 | 00818713, 00824125 |
| Tandem Roller | BW 100 SC-5 | 00818715, 00824129 |
| Tandem Roller | BW 100 ACM-5 | 00818717, 00824123, 00825291 |
| Tandem Roller | BW 138 AC-5 | 00818719, 00824923, 00824929, 00825561 |
| Tandem Roller | BW 138 AD-5 | 00818721, 00824175, 00824921, 00824927, 00825351, 00825559 |
| Tandem Roller | BW 135 AD-5 | 00818723, 00824931, 00825355, 00825563 |
| Tandem Roller | BW 100 AD-5 | 00824029, 00824561, 00824617, 00824833, 00824995, 00825357, 00825373, 00825565, 00825643, 00826215, 00826219, 00826813, 00827043 |
| Tandem Roller | BW 120 AC-5 | 00824031, 00824619, 00824839, 00825363, 00825571, 00826093, 00827049 |
| Tandem Roller | BW 120 AD-5 | 00824033, 00824563, 00824615, 00824835, 00824997, 00825359, 00825567, 00825645, 00826049, 00826217, 00826221, 00826639, 00826689, 00827045 |
| Tandem Roller | BW 100 AC-5 | 00824275, 00824621, 00824837, 00825361, 00825569, 00826091, 00827047 |
| Tandem Roller | BW 120 SL-5 | 00824537, 00824559, 00825001, 00825615, 00826779, 00827055 |
| Tandem Roller | BW 100 SL-5 | 00824557, 00824999, 00826553 |
| Tandem Roller | BW 90 AC-5 | 00825287 |
| Tandem Roller | BW 120 SLC-5 | 00826435 |
| Tandem Roller | BW 120SL-5 | 00826609 |
| Tandem Roller | BW 120 AD-5 CC | 00826793 |
Verify Before You Order
Fitment is machine-number and revision-specific; always confirm your model and serial number against the fitment list.
