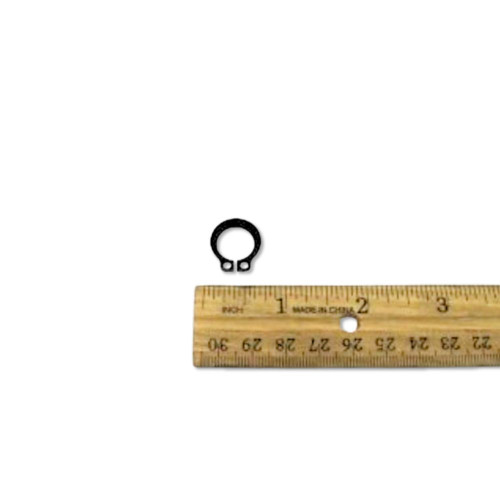

The Genie 102503GT External Retaining Ring is a genuine OEM component built for the Z-60/34 and Z-62/40 articulating boom lifts. As a factory-original part, it meets the exact dimensional and material standards Genie specifies for these machines. This retaining ring is the correct replacement when the original shows signs of deformation, cracking, or loss of retention, and it installs directly into the original groove without modification. Confirm part number 102503GT against your machine's parts manual to ensure it is the right item for your specific unit before ordering.
Key Features
- Genuine OEM Construction — Manufactured to Genie's exact material grade and dimensional specifications, ensuring the ring seats properly and holds under operating loads.
- Direct Groove-to-Groove Fitment — Sized to snap into the original external groove, replacing the existing ring without rework or additional hardware.
- Verified Compatibility — Confirmed fit for Genie Z-60/34 and Z-62/40 articulating boom lifts; cross-reference part number 102503GT with your parts manual before ordering.
- Retention Integrity — A properly seated external retaining ring keeps shafts, pins, and rotating components securely positioned; a worn or sprung ring can allow unwanted axial movement that accelerates wear on surrounding components.
- Safety-Critical Function — On aerial boom lifts, secure retention of pins and shafts is essential to structural integrity at height; replacing a failed ring promptly with a genuine OEM part supports safe machine operation.
An external retaining ring — sometimes called a snap ring — seats into a machined groove on the outside of a shaft or pin to prevent axial movement of the components it retains. On articulating boom lifts like the Z-60/34 and Z-62/40, these rings secure pivot pins, axles, and rotating assemblies throughout the boom structure and drive system, keeping everything properly aligned under load and during movement. When a retaining ring becomes deformed, cracked, or dislodged, the components it holds can shift out of position, leading to accelerated wear, misalignment, or potential mechanical failure — making timely replacement with the correct OEM ring essential.
Part Details
| Part Number | 102503GT |
|---|---|
| Brand | Genie |
| Part Type | Genuine OEM |
| Description | External Retaining Ring |
Compatibility & Fitment
| Name | Model |
|---|---|
| Z-60/34 | Z-60/34 |
| Z-62/40 | Z-62/40 |
Verify Before You Order
Fitment is machine-number and revision-specific; always confirm your model and serial number against the fitment list.
