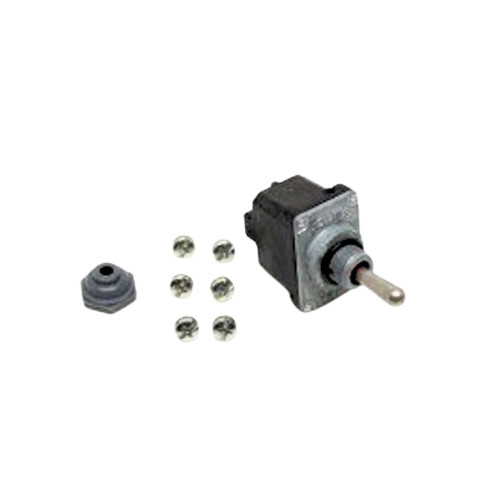

The Genie 128586GT Toggle Switch DPDT 3P MNT SHDR is a genuine OEM electrical switch designed for Z-45/25, Z-45/25J DC, and Z-45/25J Bi-Energy articulating boom lifts. As a direct OEM replacement, this switch is manufactured to the same specifications as the original, ensuring a correct fit and proper electrical function in your machine. Cross-reference part number 128586GT against your machine's parts manual to confirm it is the right switch for your specific unit before ordering.
Key Features
- Genuine OEM Electrical Integrity — Built to Genie's original specifications for correct contact rating, actuation feel, and terminal configuration — the details that matter most in a toggle switch application.
- Direct Drop-In Replacement — Designed to install in the original mounting position with the correct shoulder mount (MNT SHDR) configuration, so no rework or adaptation is needed at the panel.
- DPDT 3-Position Design — The double-pole, double-throw, 3-position switching arrangement matches the original circuit logic, preserving correct function of the control it serves.
- Broad Variant Coverage — Fits Z-45/25, Z-45/25J DC, and Z-45/25J Bi-Energy boom lifts, covering multiple drivetrain variants within the Z-45/25 family.
- Operational Safety — A faulty or intermittent toggle switch on an aerial lift can compromise control-circuit reliability. Replacing a worn switch with a genuine OEM part restores consistent, predictable electrical response.
A toggle switch is a manually actuated electrical component that opens or closes one or more circuits depending on its position. In a DPDT (double-pole, double-throw) configuration, a single actuator controls two separate circuits simultaneously, each of which can be routed to one of two outputs — making it well suited to directional or mode-selection control functions on a boom lift. When a toggle switch becomes worn, corroded, or intermittent, the circuit it governs may respond unpredictably or fail to engage at all, affecting operator control of the machine. Replacing it promptly with the correct OEM component restores reliable electrical continuity to that circuit.
Part Details
| Part Number | 128586GT |
|---|---|
| Brand | Genie |
| Part Type | Genuine OEM |
| Description | Toggle Switch, DPDT 3P MNT SHDR |
Compatibility & Fitment
| Name | Model |
|---|---|
| Z-45/25 | Z-45/25 |
| Z-45/25J DC | Z-45/25J DC |
| Z-45/25J Bi-Energy | Z-45/25J Bi-Energy |
Verify Before You Order
Fitment is machine-number and revision-specific; always confirm your model and serial number against the fitment list.
